The continuous development of plastic sheet extrusion technology has indeed contributed to the industry’s quest for innovation and optimization in the domain of material science and manufacturing. The primary objective of this paper is to provide a detailed account of the intricate steps involved in the plastic sheet extrusion process, with a particular focus on innovative solutions that have altered our understanding and application of plastics. We will then analyze the topic further by discussing important aspects such as machinery, raw materials, and techniques used in sheet extrusion processes, with an emphasis on advanced mechanisms and technological advancements. Therefore, readers can get familiar with different sectors within which plastic sheet extrusion dominates, its benefits, as well as future expectations. Let us discover the potential hidden in plastic by using modern technologies for sheet extrusion while giving rise to new prospects in materials engineering and manufacturing excellence.
The Basics of Sheet Extrusion: Understanding the Process
What is Sheet Extrusion, and How Does It Work?

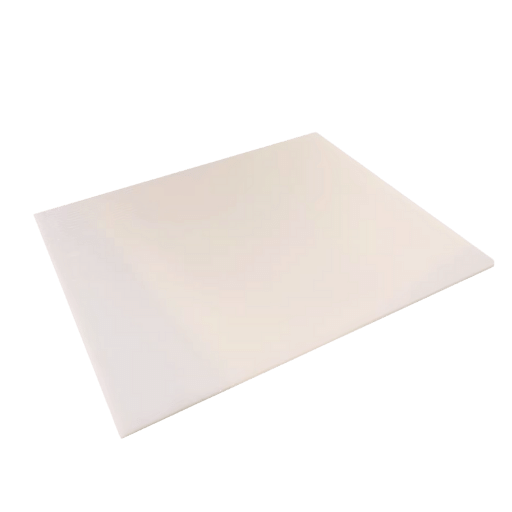

Sheet extrusion is a manufacturing process where melted plastic resins are compressed into one long flat sheet. Depending on the required use, the sheet can be produced in different thicknesses and widths. It starts by feeding plastic resin pellets into an extruder where over time, they melt through heat and the mechanical action of a screw feeder. The molten plastic then flows through a flat die, which gives it shape as it begins to take the form of a sheet. Thereafter, the newly formed sheets are rolled over on several rollers that also control their thickness.
The Key Components of Sheet Extrusion Machinery
The unison of several vital components is essential in sheet extrusion processing that converts plastic resins into sheets. These include:
- Hopper: It is the starting point where plastic resin pellets are loaded and melted.
- Extruder Barrel and Screw: In this context, the screw is located in the extruder barrel, which enables it to move and melt the resin pellets through friction and heat, respectively.
- Heater: The heater that surrounds the extruder barrel provides the necessary heat for the melting of resin pellets.
- Die: It is a precision tool at the end of the extruder for shaping molten plastics into sheets.
- Rollers: These are crucial immediately after the die since they determine both the thickness and surface texture of the sheet.
From Resin to Sheet: The Journey of Plastic Through the Extruder
The process of transforming resin pellets into a plastic sheet is done in systematic steps that have different parameters influencing the quality of the final product:
- Heating and Melting: Initially, the resin is hard pellets that must be heated to a uniform, specific temperature. The melting quality determines how strong and appealing the sheet will appear.
- Pressurizing and Shaping: The melted plastic is then pushed through a die, where it gets shaped into sheets. The speed at which it is extruded or the pressure has an influence on its width and thickness.
- Cooling and Solidifying: On exit from this machine, we allow them to cool by passing them over cold rollers. Cooling rate influences crystallinity, rigidity, as well as dimensional stability.
- Cutting and Coiling: Eventually, the sheet is either cut into various sizes or simply rolled for shipment purposes. This stage must be accurate to meet the requirements set during the application of each sheet.
By comprehending these elements and processes, we can fathom the complexity behind the extrusion of sheets; thus not only an essential part in manufacturing but also an embodiment of what modern materials science can achieve.
Exploring the Applications of Plastic Sheets in Various Industries
Thermoforming: The Role of Plastic Sheets in Packaging Solutions
Thermoforming is a very important process in which plastic sheets are heated to a workable temperature, shaped in a specific way by the use of molds, and cut into usable products. In packaging solutions, thermoforming is vital because of its versatility and efficiency. Precisely dimensioned packages can be created by this process to protect goods and enhance their appearance to customers. The type of plastic sheet used (PET, PVC, PP, etc), the temperature at which the sheet should be heated (important for formability but no degradation), and mold design (giving shape to the final product and ensuring its structural integrity) are some of the critical parameters that influence thermoforming.
Automotive and Beyond: How Extruded Sheets Impact Different Sectors
In the automotive sector, manufacturers employ extruded plastic sheets for different auto parts such as dashboards, interior panels, and even exterior body components. The characteristics that make them fit include strength (for resisting vibrations and impacts), heat resistance (required by sunshine exposure and engine temperature), and aesthetic qualities (needed for attractive visual and touchable appearances). Construction uses extruded sheets also to create durable, resistant building materials, while healthcare industries utilize them in making parts that require sterility or chemical resistance.
Innovative Uses of Plastic Sheets in Product Design and Manufacturing
Product design and manufacturing have been transformed by plastic sheets, which are lightweight, flexible, versatile, and far less pricey compared to materials such as metal and wood that were in use. Some of the recent advancements include thin plastic sheets utilized as a substrate for wearable devices in the case of flexible electronics and recycled plastic sheets employed to minimize wastage in sustainable designs. For these innovative uses, parameters concentrate on electrical insulation properties, flexibility, environmental resistance (water, UV light, chemicals), and sustainability (recyclability and environmental impact). These improvements manifest the versatility or capability of modern engineering while dealing with plastic sheets.
The Technical Edge: Advanced Capabilities in Sheet Extrusion
Exploring the Versatility of Polymers in Sheet Extrusion
Due to the modification of several critical features such as thickness, width, and texture, polymers’ ability to become sheets has a wide range of implications, as it is in applications that vary from one industry to another. By customizing these parameters, they become suitable for specific application requirement,s and this enhances their usability and effectiveness.
Adjusting Thickness, Width, and Texture:
- Thickness: The thickness of these sheets can greatly affect their strength, flexibility, and transparency. For example, when it comes to applications demanding high-impact resistance, such as protective barriers, thicker sheets are more important than thin sheets, which are also better for flexible applications like packaging materials.
- Width: Sheet width is adjusted depending on the end use, with large signs or car bodies requiring wider ones. Custom widths will save some materials from being wasted.
- Texture: Surface texture may be modified to give plastic sheeting a pleasant appearance or give it some functional properties. Texturing can lower light reflection, make a non-slip surface, or develop a tactile feeling if an application demands it.
Co-extrusion and Lamination:
Co-extrusion and lamination techniques, which combine layers with different properties, broaden plastic sheets’ performance capabilities, thereby creating a composite material that exploits the strengths of each constituent.
- Co-extrusion: This entails extruding multiple polymers simultaneously, which are then joined together to form one sheet. The result is a sheet with attributes such as rigidity and flexibility or clear/opaque layers for different applications. Layer compatibility, thermal properties, and bond strength are key parameters here.
- Lamination: In the lamination process, plastic sheets are bonded with other materials such as metal foils, fabric, or another plastic layer in order to enhance barrier strength, durability, and resistance to environmental influences. Critical parameters include adhesive selection, bond strength, and barrier properties.
By customizing and functionalizing polymer sheets, these advanced technologies have demonstrated their adaptability by being implemented across industries like packaging, construction, automotive, and electronics, among others, as they respond to emerging industry demands, thereby proving the versatility of plastics in modern manufacturing and design.
Maximizing Efficiency and Quality in Sheet Extrusion Processes
The Role of Cool, Roll, and Chill Lines in Sheet Quality
The cooling stage is given special attention in the plastic sheet extrusion process for quality reasons. The critical cooling stage essentially controls the dimensional stability, surface finish, and overall quality of products. Designed with high precision, cool, roll, and chill lines ensure the even, fast cooling of extruded sheets.
- Cool Lines: It involves passing the extruded sheet through numerous cooled rollers. The aim here is to quickly harden it while still retaining its proportions. Some essential factors are roller temperature, speed, and contact time between the rollers and the sheet.
- Roll Lines: These refer to an arrangement of rollers that guide, cool, and finish off the plastic sheet. Controlled pressure application across the width or lengthwise ensures the desired surface roughness, as well as achieving a specific thickness.
- Chill Lines: Chilled water/air is used in this method to cool down extruded sheets at high speeds. This is necessary for thermally sensitive materials or when transparency and brightness are greatly needed. Chill medium temperature rates should be observed with flow rate distribution over each section of a sheet being very important for desirable results.
Advances in Extrusion Technology: Achieving Uniform Thickness and Surface Finish
Nowadays, development in extrusion technology has a great impact on uniform thickness and surface quality. This is made possible by a control system for high accuracy, real-time gauging, as well as automatic adjustments, which aid in maintaining sheet dimensions and properties consistently throughout production. They include;
- Thickness measurement technology: It uses sensors that measure the sheet thickness across its width, enabling instant adjustments.
- Automated die adjustment: Computer-controlled systems can dynamically adjust the die gap to correct for differences in material flow or characteristics and maintain uniform thickness.
- Corona treatment: For example, corona treatment techniques increase the surface energy of plastic sheets, thereby improving adhesion characteristics and achieving better finishes.
Troubleshooting Common Extrusion Issues: Tips from the Industry
In order to prevent common extrusion problems, it is important for extruders to approach the process with a comprehensive understanding of it and an eye for detail. Here are some tips from the industry.
- Uneven Thickness – Ensure that the raw material is uniform and that heat is equally distributed over it. Employ systems such as automatic thickness control in case real-time adjustments are required.
- Surface Imperfections – Maintain optimum cooling rates and ensure that the system is clean and functioning properly. Also, surface treatments after extrusion can improve the finish.
- Warping or Distortion – This may happen with uneven cooling. Make sure that cool, roll, and chill lines are running correctly at uniform temperatures and pressures across the sheet.
Consequently, plastic sheet manufacturers must adhere to these guidelines and adapt their techniques to new technologies if they want to remain competitive by improving the quality of their products and their efficiency in this field.
Sheet Extrusion Machinery: Picking the Right Tools for Your Plastic Needs
Identifying the Key Features of Sheet Die and Extrusion Machines
To optimize production and maintain high-quality output, the features of sheet dies and extrusion machines must be understood. The main characteristics to look at are:
1. High precision control: Precision in terms of temperature and speed control is crucial for ensuring consistent quality. State-of-the-art machines offer improved controls.
2. Adaptability: This implies that it can cater to different types of materials, as well as products made from those materials. This includes quick die changeovers, adjustable thickness settings, and provision for multiple polymers.
3. Durability: The durability and longevity of the machine are influenced by the material used in constructing it. Stainless steel or similar high-grade metals are commonly chosen due to their tough resistance to wear and rusting.
4. Ease of maintenance: Machines that have been built with an emphasis on maintenance make repairs easier and faster, which in turn minimizes downtime.
5. Energy efficiency: Modern devices consume less electricity, thus excessive costs are reduced while helping reduce environmental impact through eco-friendly operations.
Maintenance and Upkeep: Ensuring Longevity and Performance of Your Machinery
Regularity in the maintenance practice and careful upkeep are necessary to ensure the durability and performance of sheet extrusion machinery. Essential maintenance procedures include:
- Routine Inspections: Frequent checks for wear, especially in parts that experience high friction, reveal any problems before they become problematic.
- Lubrication: Appropriate lubrication of moving parts prevents wear and prolongs machine life.
- Cleaning: Preventing operational issues and upholding hygiene standards necessitates the cleanliness of the machine, including removing plastic residues.
- Temperature Control Monitoring: The accurate functioning of heating systems is critical to maintaining product quality and energy efficiency.
- Software Updates: In machines with digital controls, periodic software updates can also improve their functionality while introducing new functionalities.
Integration with Automation: Enhancing Production Efficiency and Capability
To enhance efficiency, reduce waste, and maintain product consistency, it is important to automate the sheet extrusion processes. Several things need to be done to integrate automation:
- Data Collection and Analysis: In real-time, automated systems can collect data and analyze it to optimize production parameters.
- Automated Raw Material Handling: By automatically feeding raw materials into production processes, systems can make the production process smoother and reduce manual labor.
- Quality Control Automation: Real-time quality inspection using sensors and cameras allows for instantaneous detection of defects.
- Predictive Maintenance: Predictive maintenance tools that use machine learning algorithms help in predicting potential machine failures before they occur, thus minimizing downtime.
Maintaining regular upkeep, understanding the key aspects of sheet dies as well as extrusion machines, and incorporating automation technologies ensures that their machinery will always remain efficient, durable, and capable of meeting the demands of modern plastic sheet production.
The Future of Sheet Extrusion: Trends and Innovations Shaping the Industry
Sustainable Practices: The Move Towards Greener Sheet Extrusion
It is essential for the sheet extrusion industry to make sustainable practices a priority to respond to global environmental problems. In addition, they apply new green materials, energy-saving equipment, and recycling schemes as a means of minimizing their carbon footprints. For example, the application of biodegradable polymers and recycled plastics as feedstock has gained momentum. Further, efficiency in production processes leads to low electricity consumption; turning waste into usable materials is also vital in enhancing sustainability.
Emerging Materials: Exploring New Polymers and Composites in Extrusion
The advancement of sheet extrusion technology largely relies on the exploration of novel polymers and composites. This is because material science advancements have enabled the development of polymers that are more environmentally friendly, alongside having improved properties such as high-temperature resistance, strength, and durability. An example is Polylactic Acid (PLA) and Polyhydroxyalkanoates (PHA), two biopolymers heralded for their degradable nature and thus currently under scrutiny for possible uses in different sectors like the automotive industry or packaging. Also, an interest has been shown in incorporating nanocomposites into traditional polymers to enrich them with features, including increased barrier properties or electrical conductivity.
Advancements in Sheet Extrusion Technology: What’s on the Horizon?
In the future, technology that boosts efficiency and quality and protects the environment is expected to be developed in the sheet extrusion industry. The main categories of these innovations are:
- Novel Screw and Barrel Designs: Aimed at increasing plasticization efficiency, new designs can enable faster and uniform melting of polymers translating into higher throughput rates and better material features.
- Intelligent Control Systems: Linking extrusion parameters to real-time monitoring and control through IoT (Internet of Things) devices can enhance production efficiency while reducing waste.
- Energy Recovery Systems: Energy recovery technologies for capturing and reutilizing energy from extrusion processes have great potential to drastically reduce overall energy consumption in sheet extrusion operations.
- Advanced Material Recycling Processes: Chemical recycling systems have evolved in such a way that they can effectively recycle plastics into high-quality raw materials, thereby further facilitating the implementation of circular economy principles across this sector.
To sum up, this strategy will enable sheet extrusion to evolve together with sustainability movements, as well as changes in material use patterns and advancements in technology. By focusing on these areas, the industry is well-positioned to meet the evolving demands of markets and regulations, driving forward toward a more sustainable and efficient future.
